COM Express Type 6

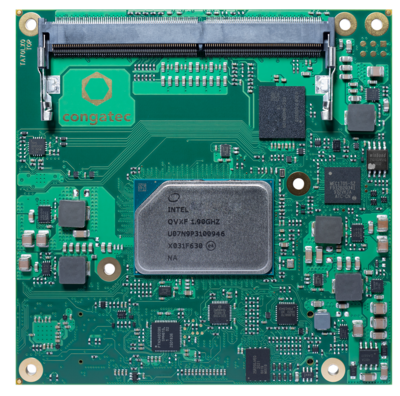

COM Express Compact module with Intel Atom® x6425RE quad core processor with 1.9GHz core frequency, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. Industrial grade.

COM Express Compact module with Intel Atom® x6414RE quad core processor with 1.5GHz core frequency, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. Industrial grade.

COM Express Compact module with Intel Atom® x6212RE dual core processor with 1.2GHz core frequency, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM memory support. Industrial grade.

Standard heatspreader for COM Express Compact module conga-TCA7 with lidded Intel Atom® x6000E processors. All standoffs are M2.5mm thread.

Passive cooling solution for COM Express Compact module conga-TCA7 with lidded Intel Atom® x6000E processors. All standoffs are M2.5mm thread.

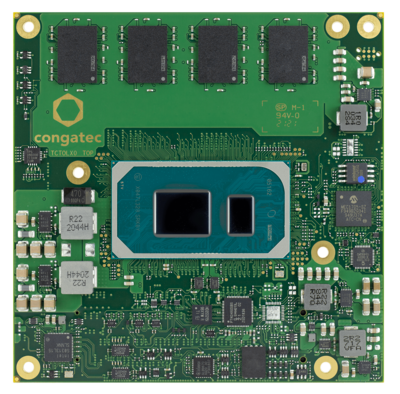

COM Express Type 6 Compact module based on Intel® Core i5-1145G7E 4-core processor with 1.5GHz up to 4.1GHz turbo boost, 8MB cache, Intel® Iris® Xe Graphics with 80EU and dual channel DDR4 3200 MT/s memory interface. Commercial temp. range.

COM Express Type 6 Compact module based on Intel® Core i7-1185GRE 4-core processor with 1.8GHz up to 4.4GHz turbo boost, 12MB cache, Intel® Iris® Xe Graphics with 96EU and dual channel DDR4 3200 MT/s memory interface. Industrial temp. range.

COM Express Type 6 Compact module based on Intel® Core i5-1145GRE 4-core processor with 1.5GHz up to 4.1GHz turbo boost, 8MB cache, Intel® Iris® Xe Graphics with 80EU and dual channel DDR4 3200 MT/s memory interface. Industrial temp. range.

COM Express Type 6 Compact module based on Intel® Core i3-1115GRE 2-core processor with 2.2GHz up to 3.9GHz turbo boost, 6MB cache, Intel® Iris® Xe Graphics with 48EU and dual channel DDR4 3200 MT/s memory interface. Industrial temp. range.

COM Express Type 6 Compact module based on Intel® Core i7-1185GRE 4-core processor with 1.8GHz up to 4.4GHz turbo boost, 12MB cache, Intel® Iris® Xe Graphics with 96EU and 32 GByte dual channel LPDDR4X 4266 MT/s memory. Industrial temp. range.

COM Express Type 6 Compact module based on Intel® Core i5-1145GRE 4-core processor with 1.5GHz up to 4.1GHz turbo boost, 8MB cache, Intel® Iris® Xe Graphics with 80EU and 16GByte dual channel LPDDR4X 4266 MT/s memory. Industrial temp. range.

Standard active cooling solution for high performance COM Express module conga-TC570 with integrated heat pipes, 25.5mm overall heat sink height and integrated 12V fan. All standoffs are with 2.7mm bore hole.
